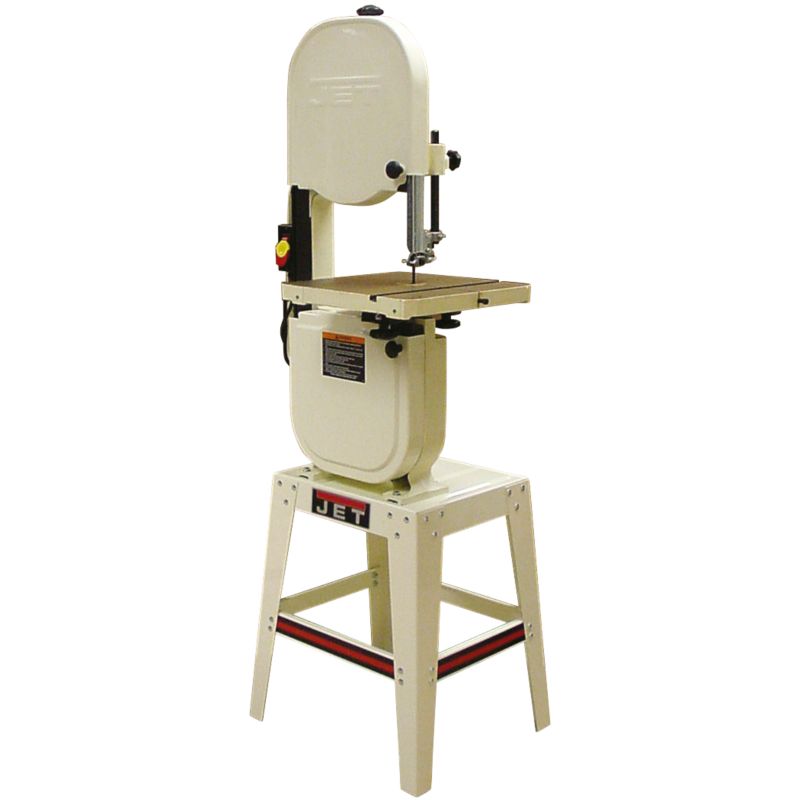

JWBS-14OS, Bandsaw with Open Stand

Stock Number: 708113A

This little unit is a great place to start when looking for a home shop bandsaw. It features a powerful 3/4 HP motor and has the cutting capacities needed for larger shops.

WMH TOOL GROUP - 708113A (Click to Zoom)

DetailsSpecificationsAccessoriesWarranty

Details
6" resaw capacity for cutting larger pieces of wood
14" x 14" cast iron table tilts 45° to the right and 10° to the left
Cast iron frame construction for strength, rigidity and reduced vibration
4" dust port allows for direct connection of dust collection system
Precision computer balanced wheels eliminate vibration for accurate blade tracking
Graphite impregnated polymer blade guides with roller bearing thrust guides provide quicker set-up and a cooler running blade
Six-spoke band wheels computer balanced to spin true without vibration
3/8", 6 TPI woodworking blade is included so you can start cutting right away
Single knob tracking adjustment simplifies the blade tracking process


Part Number			708113A
Cutting Capacity Width			13½ "
Cutting Capacity Height			6 "
Minimum Saw Blade Width			1/8 "
Maximum Saw Blade Width			¾ "
Blade Speed			3000 SFPM
Blade Length			93½ "
Table Dimension (LxW)			14 x 14 "
Table Tilt			10 ° left, 45 ° right
Table Height From Floor			44 "
Dust Port Outer Diameter			4 "
Dust Collection Minimum CFM			300 cu.ft/min
Stand Type			Open
Bandsaw Size			14 "
Wheel Diameter			14 "
Motor Power			¾ HP
Motor Voltage			115 / 230 V
Prewired Voltage			115 V
Motor Current			7 / 3.5 A
Motor Phase			1 Ph
Family Description			14" OPEN STAND BANDSAW
Model Number			JWBS-140S
Brand			Jet
Overall Dimensions			68 x 24 x 26-1/2
Height			15 inch
Width			20 inch
Length			45 inch
Net Weight			161 pound

	Part #	Description
	708118	JMB-UMB, Universal Mobile Base
	708127	JRBG-14, JET Carter Style Bearing Blade Guides for 14" Bandsaws

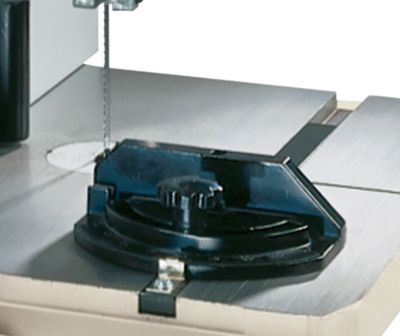

	708716	JMG-14, Miter Gauge for 14" Bandsaw
	708717A	JRB-14A:6" Riser Block for 708113A
	708718R	JRF-14R, Rip Fence with Resaw for 14" Bandsaw
	708719	JBB-14, Blade Block Set for 14" Bandsaw
	709351	Premium WW Bandsaw Blade 93-1/2" 1/8" 14 Raker .025"
	709354	Premium WW Bandsaw Blade 93-1/2" 1/4" 6 Hook .025"
	709356	Premium WW Bandsaw Blade 93-1/2" 3/8" 4 Hook .025"
	709358	Premium WW Bandsaw Blade 93-1/2" 1/2" 6 Hook .025"
	709359	Premium WW Bandsaw Blade 93-1/2" 3/4" 3 Hook .032"
	709370	Standard WW Bandsaw Blade 93-1/2" 1/8" 14 Hook .020"
	709371	Standard WW Bandsaw Blade 93-1/2" 3/16" 6 Skip .020"
	709372	Standard WW Bandsaw Blade 93-1/2" 1/4" 6 Skip .020"
	709373	Standard WW Bandsaw Blade 93-1/2" 3/8" 4 Skip .020"
	709374	Standard WW Bandsaw Blade 93-1/2" 1/2" 4 Hook .025"
	709375	Standard WW Bandsaw Blade 93-1/2" 3/4" 4 Hook .032"
	709488	Silicon Steel WW Bandsaw Blade 93-1/2" 3/4" 3 Hook .032"
	709489	Silicon Steel WW Bandsaw Blade 93-1/2" 3/4" 10 Raker .032"
	709588	Silicon Steel WW Bandsaw Blade 93-1/2" 3/16" 10 Raker .025"
	709589	Silicon Steel WW Bandsaw Blade 93-1/2" 3/8" 6 Hook .025"
	709590	Silicon Steel WW Bandsaw Blade 93-1/2" 3/8" 10 Raker .025"
	709591	Silicon Steel WW Bandsaw Blade 93-1/2" 3/8" 14 Raker .025"
	709592	Silicon Steel WW Bandsaw Blade 93-1/2" 1/2" 4 Hook .025"
	709593	Silicon Steel WW Bandsaw Blade 93-1/2" 1/2" 6 Hook .025"
